Commercial Collection
Deluxe Timed Flow
High Efficiency Shower Panel
Kelda’s Deluxe Timed Flow is a fully thermostatic, high-efficiency shower system designed to elevate your shower experience, conforming to regulatory standards while providing an enhanced shower experience with Timed Flow (TF) control to promote water efficiency. Innovative Air-Powered™ technology provides an invigorating shower experience using significantly less water and energy, meaning reduced bills – and fewer carbon emissions to help protect the planet.
● Commercial specification
● Compatible with group or single feed mixer
● Robust design
● Powder-coated stainless steel construction
● Fixed/ Flex showerhead
● Fixed – 93011100 / Flex – 93013100
● Timed Flow (TF) push-button eco-control
● H1100mm x W222mm x D86mm (D218mm showerhead)

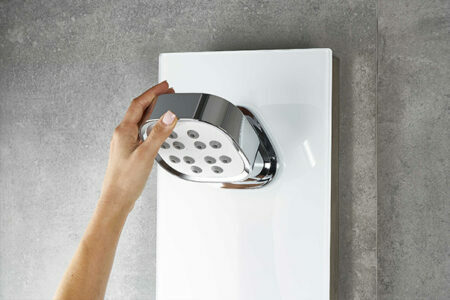

Flexible Showerhead – Flex™
Kelda’s Flex™ showerhead uses 12 patented MACRO-Jet™ nozzles to deliver a powerful, consistent stream of large MACRO droplets for a superior shower experience. Built from high-impact engineering thermoplastic for long-lasting durability, the showerhead is fixed at the ideal angle to ensure optimum spray coverage and performance – suitable for all hair types.
Water-Efficient Control
Kelda’s TF commercial specification shower panel operates using a blended water supply from a single or group mixer (not supplied). To support water reduction, the flow is activated via a digital push-button that can be preset anywhere between 10 and 60 seconds, helping facilities maintain control, reduce waste, and improve overall efficiency.
Simple Installation
Kelda shower panels are purpose-built for upgrading surface-mounted shower systems, eliminating the need for wall cavities, tiling work, or chasing into surfaces. They install quickly and easily within the shower cubicle, and ongoing servicing is just as simple – every component requiring routine testing or maintenance is fully accessible for fast, hassle-free upkeep.
Efficient Cleaning
Kelda’s MACRO droplet technology produces droplets significantly larger than those in a standard mixer shower, delivering noticeably greater momentum and the sensation of higher spray pressure. With up to 15× more impact than a conventional shower droplet, a Kelda shower offers exceptionally effective rinsing performance – effortlessly removing shampoo even from the thickest hair.
Sustainable Showering
At Kelda, we believe sustainability should never mean compromise. Our advanced shower technology delivers a full, invigorating experience using just 5 litres of water per minute – half that of a standard shower. The result? Less water, less energy, and a lighter carbon footprint. All without sacrificing performance.
Immersive Experience
Imagine a shower designed for both you and the planet. Kelda’s advanced technology atomises water into hundreds of precisely engineered MACRO droplets, ensuring you feel every invigorating drop. By using less water, we help conserve one of the world’s most precious resources – yet we never compromise on the power or quality of your showering experience.
Air-Powered™ Technology
Conventional ‘aerating’ showers rely on the Venturi principle to restrict water flow and draw in atmospheric air through a small hole in the showerhead. While this approach is a cost-effective way to reduce water usage and alter the ‘feel’ of the shower, it offers no measurable increase in spray force or rinsing performance, regardless of flow rate.
In contrast, Kelda’s patented Air-Powered™ technology, inspired by decades of advanced aerospace engineering, injects water into a high-velocity air stream, transforming it into hundreds of MACRO droplets, each up to 2.5× larger than those from a standard shower. The result is a fuller, more powerful spray that delivers the sensation of more water while conserving it, providing a superior showering experience for every user.
MACRO-Jet™ Nozzles
Kelda’s showerhead uses 12 precision-engineered MACRO-Jet™ nozzles to deliver powerful, efficient MACRO droplets. Their larger core diameter boosts thermal stability, improves rinsing performance, and ensures long-lasting reliability. With bigger, smarter nozzles that resist blockages and limescale, you get consistently high performance with minimal maintenance – every time you shower.
KSMART Microprocessor
A digital microprocessor finely controls the perfect blend of water and air, delivering Kelda’s signature high-performance, water-saving shower experience every time. For even greater efficiency insights, Kelda’s optional KSMART system monitors and records detailed water-consumption data – ideal for integrating with Intelligent Building Management Systems (IBMS) to optimise building-wide sustainability.
Air-Protect™
To reduce water stagnation and help prevent bacterial growth, Kelda’s showerhead uses a single-mode spray plate with a fixed pattern and no moving parts – delivering consistent performance with fewer hygiene risks. For added protection, Kelda’s Air-Protect™ technology automatically blows air through the showerhead after each use, keeping the system dry, clean, and reliably hygienic.
Experience the Future of Showering
Technical Specification
Input voltage: 100-240V 47/63Hz
Rated power: 37W (during operation), 1.8W (standby)
Operating temperature range: 0ºC to +35ºC
