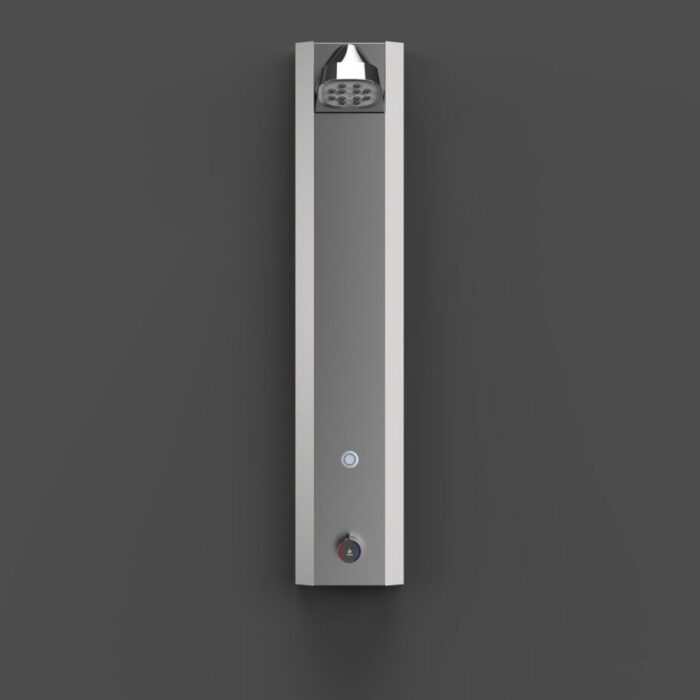

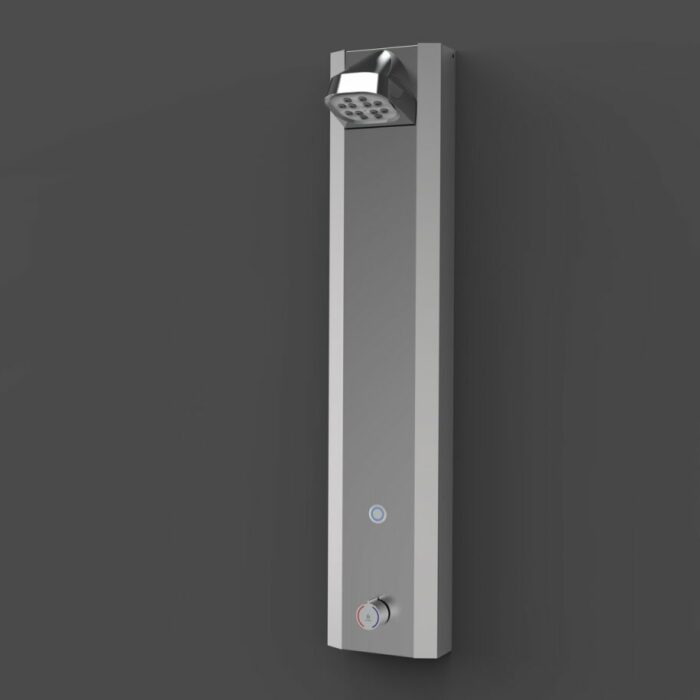

Commercial Shower Panel TF + TMV2
High Efficiency Shower Panel
Kelda’s Commercial Shower Panel TF + TMV2 is designed for environments where durability, robust design and low maintenance are key factors. The water-efficient Timed-Flow (TF) feature promotes water saving, while the TMV2 rated thermostatic mixer ensures the delivery of safe constant hot water. Innovative Air-Powered™ technology provides an invigorating shower experience using significantly less water and energy meaning reduced bills – and fewer carbon emissions to help protect the planet.
● Commercial specification
● Compatible with separate hot and cold supply
● Robust design
● Fixed™ showerhead
● Thermostatic mixer valve TMV2 Approved
● Timed Flow (TF) push-button eco-control
● H1100mm x W222mm x D86mm (D218mm showerhead)
● Part No. 93002005 (Range 93002000)
Please Enquire for Price
Key Features
Fixed Showerhead – Fixed™
The Fixed™ showerhead features 12 patented MACRO-Jet™ nozzles, each designed to create a perfect stream of water with large MACRO droplets. The head is constructed from high impact strength engineering thermoplastic for increased durability, and fixed at the perfect angle to provide optimum spray performance – with all hair types in mind.
Water-Efficient Control

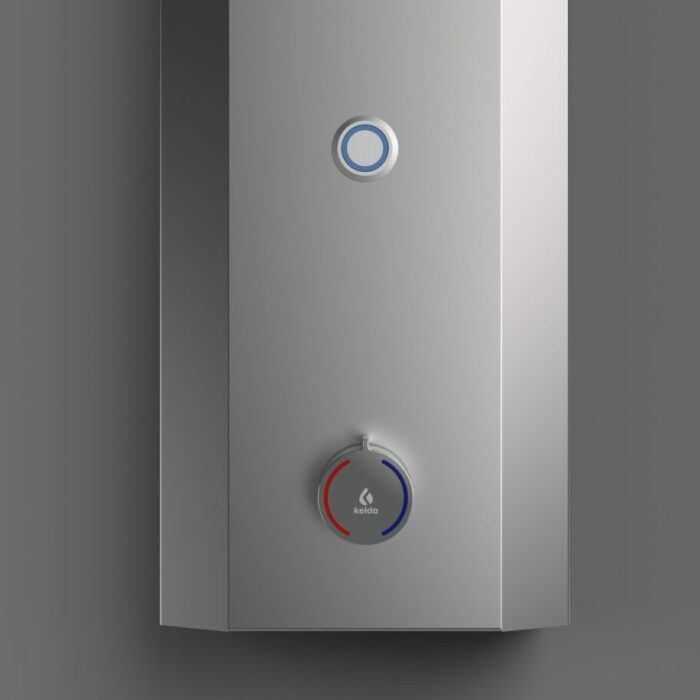

Kelda’s commercial specification shower panel with TMV2 safety valve provides the user with full temperature control up to 38° C to prevent scalding. In order to promote water reduction flow is activated by a digital push-button which can be preset from 10 to 60 seconds.
Fail-safe Design
Kelda TMV2 safety valve has been tested at both high and low pressures to meet the highest safety standards, such as thermal shut down on hot or cold supply failure, testing for hot spikes, testing for temperature control at equal and unequal pressures, testing for temperature stability under changing inlet temperatures as well as many others.
Efficient Cleaning
Compared to standard showers on the market, Kelda’s MACRO droplets are larger – yielding larger momenta. This gives the sensation of more spray pressure. With 15X more impact than a standard shower droplet a Kelda shower is more effective at rinsing shampoo out of even the thickest of hair.
Sustainable Showering
Mixers showers waste too much water and use precious resource. A Kelda shower uses 5 litres per minute of water compared to an average shower that uses 10. This means half the water and energy and therefore fewer carbon emissions. A Kelda shower maximises every droplet to reduce waste.
Immersive Experience
Imagine a shower that is designed for you and the planet. A Kelda shower atomises water into 100s of perfectly engineered MACRO droplets to ensure you feel every single one of them. We may use less water to help conserve the world’s most precious resource but we haven’t compromised on experience.
Advanced Technology
Air-Powered™
Kelda’s patented Air-Powered™ technology is drawn from decades of cutting-edge aerospace technology. Water is injected into a high velocity air stream where it is broken up into 100s of MACRO droplets that are 2.5X the size of a standard shower – making less water feel like so much more.
MACRO-Jet™ Nozzles
Kelda’s showerhead comprises an array of 12 specially engineered MACRO-Jet™ nozzles. A larger core diameter produces larger MACRO droplets – providing better thermal stability and rinsing performance. Larger nozzles also improve operational reliability as they are less likely to block and accumulate limescale.
KSMART Microprocessor
A digital microprocessor controls the optimum ratio of water and air to the showerhead for the ultimate Kelda shower experience. Kelda’s optional Shower Monitoring And Recording Technology (KSMART) can collect data on water consumption for intelligent building management systems (IBMS).
Air-Protect™
To reduce the risk of water stagnation and prevent bacterial growth Kelda’s showerhead features a single-mode spray plate with fixed spray and no moving parts. For added safety Kelda also utilises it’s Air-Protect™ technology to blow air through the showerhead after each and every use.
Technical Specification
Electrical
Input voltage: 200V-240V 50/60HzrnrnRated power: 75W (during operation), 5W (standby)rnrnOperating temperature range: 0ºC to +35ºC
Air-Powered™
Motor type: Kelda optimised centrifugal digital fanrnrnMotor speed: Max: 40,000 rpmrnrnOperating airflow: Up to 525 l/minrnrnStatic Pressure: Max. 4,860 ParnrnMaterials: FDA compliantrnrnNoise Level: Exemplary quiet-running noise level of just 49 dB(A)
Construction
Front construction: Stainless steel 316rnrnUnder body assembly construction: Stainless steel 316rnrnExterior screw type: Torx 15rnrnWater ingress protection rating of Control Hub: IPX5rnrnWater ingress protection of transformer: IP67
Operation
Control type: Digital push-button with timed flow (10 – 60 seconds). Sequential mixer with flow control for Fixed™ showerheadrnrnMixer type: Thermostatic (TMV2)
Water
Water flow rate: 5.0 l/min (Fixed™ showerhead)rnrnMaterials: WRAS approved (water path materials)rnrnOperating Pressures: 1 – 5 barrnrnConnections: 150mm centres (15mm or ½” BSP)rnrnWater Supply: Separate Hot and cold feed
Logistics
Part number: 93002000rnrnNet weight: 11.6KgrnrnPackaged weight: 12.1KgrnrnPackaged dimensions: H1200mm x W300mm x D200mm
Components
Showerhead type: Fixed™ showerheadrnrnHandset type: Not includedrnrnTransformer: LPV 150W-36V ACrnrnAdditional: Instruction Manual, Fitting kit
Connectivity (Commercial Only)
Wi-FirnrnUtilises standard 802.11b/g/n 2.4GhzrnrnData Management Software (Cloud)rnrnKelda WMS cloud-based platformrnrnMemoryrnrnMicro SD card for 60 day backup data storagernrn4GrnrnOptional 4G router available (no/poor Wi-Fi)
Standard guarantee
2-year guarantee
Dimensions

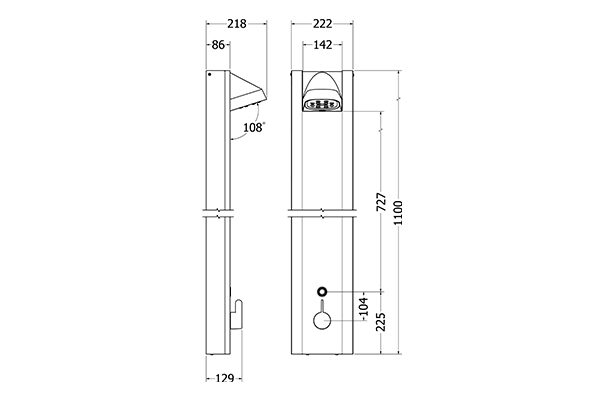

Product dimensions: H1100mm x W222mm x D86mm (D218mm showerhead)rnrnRecommended installation height from showerhead to floor: 2000mm (male), 1900mm (female)rnrnMinimum clearance: 220mm clearance either side and above productrnrn
Frequently Asked Questions
What is the flow rate of a Kelda shower?
A Kelda shower is designed to operate at 5 litres per minute (5 l/min) but thanks to the innovative Air-Powered™ technology feels like 10.
How do Air-Powered™ showers work?
Conventional ‘aerating’ showers use the Venturi principle to restrict flow and draw atmospheric air into the water through a small hole in the showerhead. This is a very cheap way to reduce the mass flow of water, and aerate it to change the ‘feel’ of the shower, but has no measurable boost in force or performance, regardless of flow rate.rnrnIn contrast, Kelda’s patented Air-Powered™ showers use the principles of fuel injection technology. Each shower features an intelligent microprocessor and powerful digital fan which controls the delivery of water and air to the showerhead. Within the showerhead, water is injected into a high-velocity air stream where it is broken up into 100s of droplets that are 2.5X the size of a standard shower. Larger droplets yield larger momenta providing the sensation of more spray pressure, making less water feel like so much more. With 15X more impact than a standard shower, a Kelda shower is more effective at rinsing shampoo out of even the thickest of hair.
Can I replace my mixer shower with a Kelda shower?
A Kelda shower has been designed to simply replace a conventional bar mixer shower. The hot and cold feed to the thermostatic mixer are set at 150mm centres, similar to a standard bar mixer shower for easy retrofit. An electrical supply is required to power the fan. Installation of this product must be carried out in accordance with these instructions by qualified, competent personnel. Please refer to the Instruction Manual for further guidance.
How do I clean my Kelda shower?
Every Kelda shower is designed using premium materials such as optical white glass and stainless steel providing a sleek design. It is designed to provide years of enjoyment but without regular cleaning, a combination of dirt, soap scum, limescale and mould can build-up and affect operation.rnrnTo help keep your Kelda shower in good working condition you should aim to clean once a week and a deep clean once a month. These will help you remove awkward limescale and prevent its build-up.rnrnShower HeadrnrnLimescale build up around the nozzles in your shower head not only looks unsightly, but can also affect water flow. A simple fix is to remove the showerhead components, insert into a sealable plastic bag or container and fully immerse in vinegar for at least 30 minutes. Afterwards remove and give the nozzles a quick brush or wipe to remove any remaining deposits. Finally, rinse with water and refit. Please refer to the Instruction Manual for assembly instructions.rnrnPlease NoternrnDuring regular cleaning of the shower area, do not direct a water hose at the shower head while the shower is functioning. It’s important to keep in mind that some everyday cleaners contain harsh chemical components that should not be applied directly to the surface of the shower.
